Assault Figured Magenta Perimeter
Stylish, Elegant, and Ready to Melt Faces

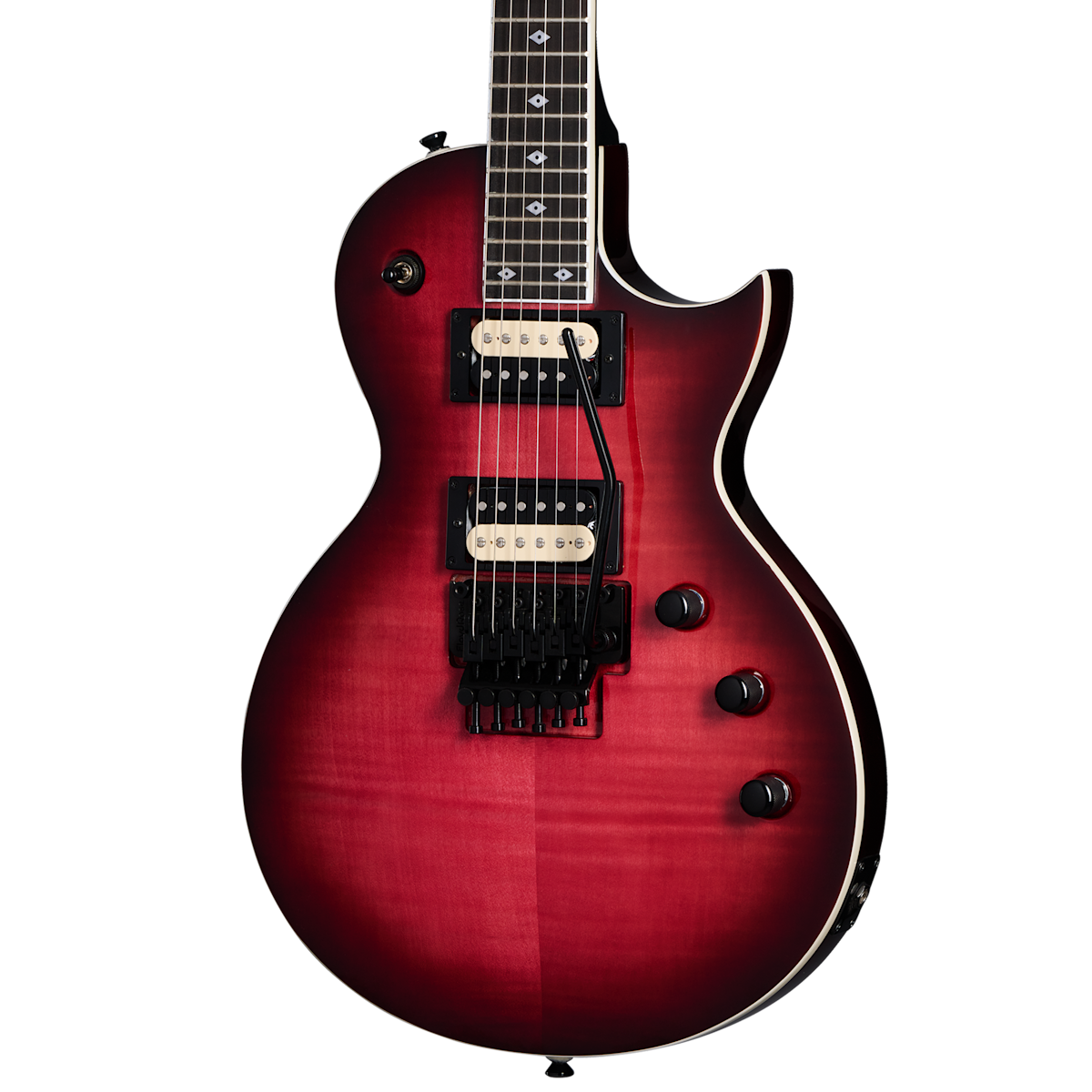

The Kramer Assault started life as the Kramer Custom when it was first released in 2000. A modern take on the Les Paul™, it has since become a popular model for hard rock and metal players who want a lighter and sleeker single cutaway guitar. This newly updated version features a new three-piece thermally-aged maple neck with a satin-finished back, K-Speed SlimTaper™ C profile, and 25.5” scale length, while the ebony fretboard is equipped with 24 jumbo frets and decked out with classic Kramer Diamond Eye inlays. The mahogany body is capped with a AAA flame maple veneer and is packing a pair of Kramer USA Eruption humbucker™ pickups for full-throttled tone and plenty of attitude. They’re wired to individual volume controls and a master tone control, all of which use CTS® potentiometers. Of course, we also included a Floyd Rose® 1000 series tremolo and R2 locking nut so you can dive-bomb any audience into submission at will and a premium gig bag to help keep it safe when you’re headed out to blow everyone away at your next gig.
Body Style
Single Cut
Body Shape
Assault
Body Material
Mahogany
Top
AAA Flame Maple Veneer
Binding
Single-ply, Top and Fretboard
Body Finish
Gloss Body, Satin Neck
Profile
Kramer K-Speed SlimTaper C
Scale Length
647.7 mm / 25.5 in
Fingerboard Material
Ebony
Fingerboard Radius
320.0 mm / 12.598 in
Neck Material
3-piece Thermally-aged Maple
Fret Count
24
Frets
Jumbo
Nut Material
Floyd Rose R2; Top-mounted
Nut Width
41.28 mm / 1.625 in
Inlays
Pearloid Diamond Eye
Joint
Glued In, Set Neck
Finish
Black

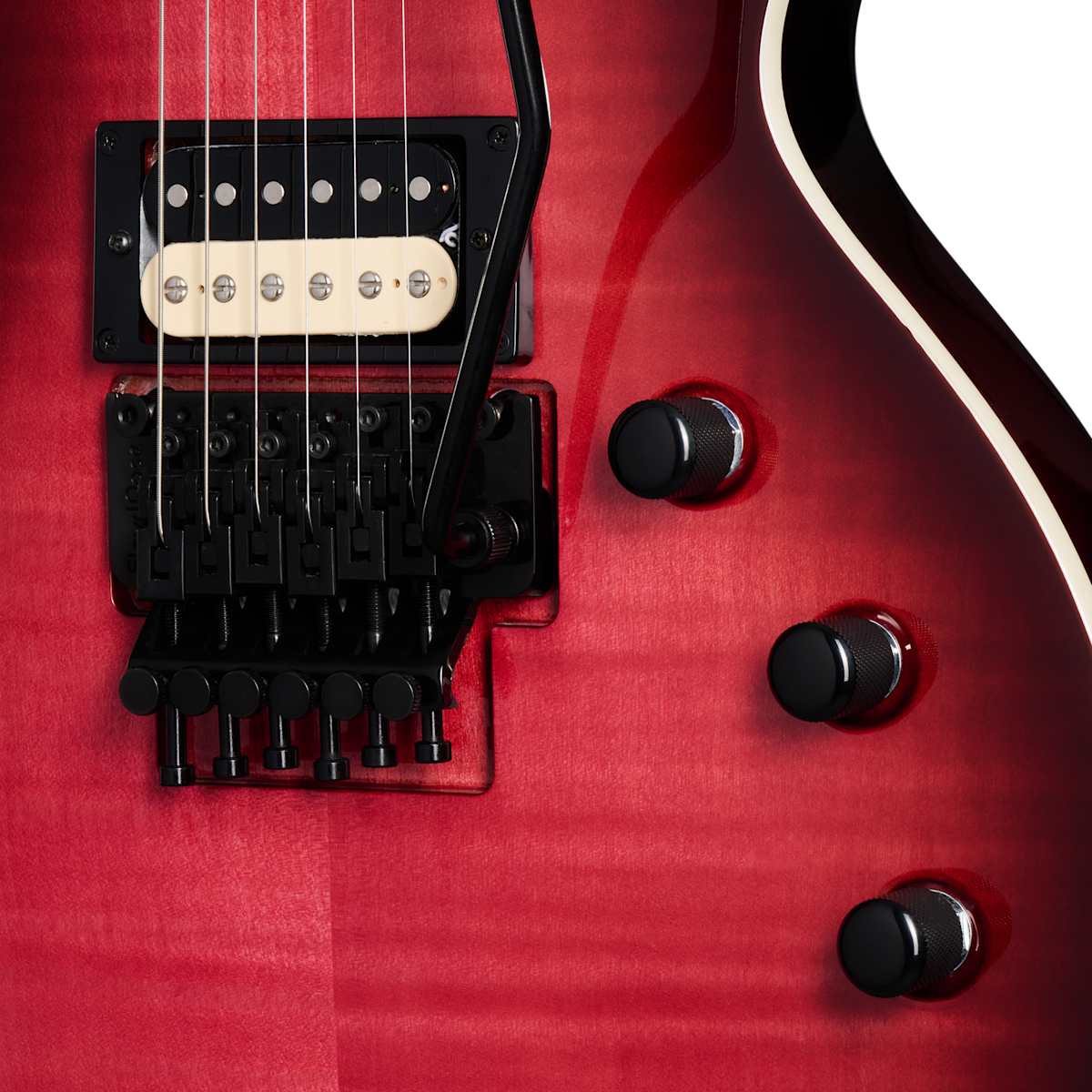

Bridge
Floyd Rose 1000 Series
Tuning Machines
Die Cast Mini
Pickguard
None
Truss Rod
Dual Action
Truss Rod Cover
Single-ply Black Bullet with "Assault" in Gold
Control Knobs
Black Metal Knurled
Switch Tip
Black
Switch washer
Black
Jack Plate Cover
Black
Plastic Parts
Black
Control Covers
Black
Strap Buttons
2 - Black; Bottom and Upper Shoulder
Mounting Rings
Black
Pickup Covers
None
Neck Pickup
Kramer USA Eruption Rhythm
Bridge Pickup
Kramer USA Eruption Lead
Controls
2 Volume, Master Tone; CTS Potentiometers
Pickup Selector
3-way Toggle
Output Jack
1/4"
Strings Gauge
.009, .011, .016, .024, .032, .042
Case
Premium Gig Bag
Disclaimer: In order to continually improve the design, quality and performance of our products and instruments and to make use of the best materials at all times, Kramer reserves the right to change specifications without notice.
