84 HH Radiant Red
Gloss-finished alder body, satin-finished hard maple neck with Kramer SlimTaper™ C profile, color-matched non-angled banana headstock, direct-to-body mounted Kramer USA Eruption T humbucker™ pickups, coil splitting toggle switches, Floyd Rose® 1000 series tremolo and rear-mounted R2 locking nut, premium gig bag

A modern take on the legendary Kramer 84, with expanded features and all of the Made to Rock Hard attitude intact
The Kramer 84 HH is an updated take on the legendary Kramer 84. While it has expanded features, we’ve kept all of the Made to Rock Hard Kramer attitude of the original intact. The Kramer 84 HH is equipped with an alder body with top and belly contours for comfort. The body has a Floyd Rose® 1000 Series tremolo paired with an R2 locking nut for vibrato bar acrobatics without the worry of going out of tune. The neck is a thermally aged bolt-on hard maple neck with a walnut skunk stripe on the back, a satin finish, and a hard maple fretboard that has 22 jumbo frets and black dot position markers. The neck has a Kramer SlimTaper™ C profile that is thin and fast-playing, making it perfect for shredding. The fretboard features a compound radius that is 10” at the nut and flattens out to 14” at the other end, so playing first-position chords is comfortable while allowing for wide string bends further up the neck without the notes fretting out. The dual-action truss rod is adjusted with a spoke wheel-style truss rod adjustment nut, which is positioned at the end of the fretboard for quick access. The body’s gloss finish color is duplicated on the front and back of the 84 non-angled big banana headstock. It has a classic Kramer logo, die-cast tuning machines, a nickel string retaining bar, and a wrench holder for the Floyd Rose on the rear, so you’ll always have the tools to adjust the tremolo on hand.

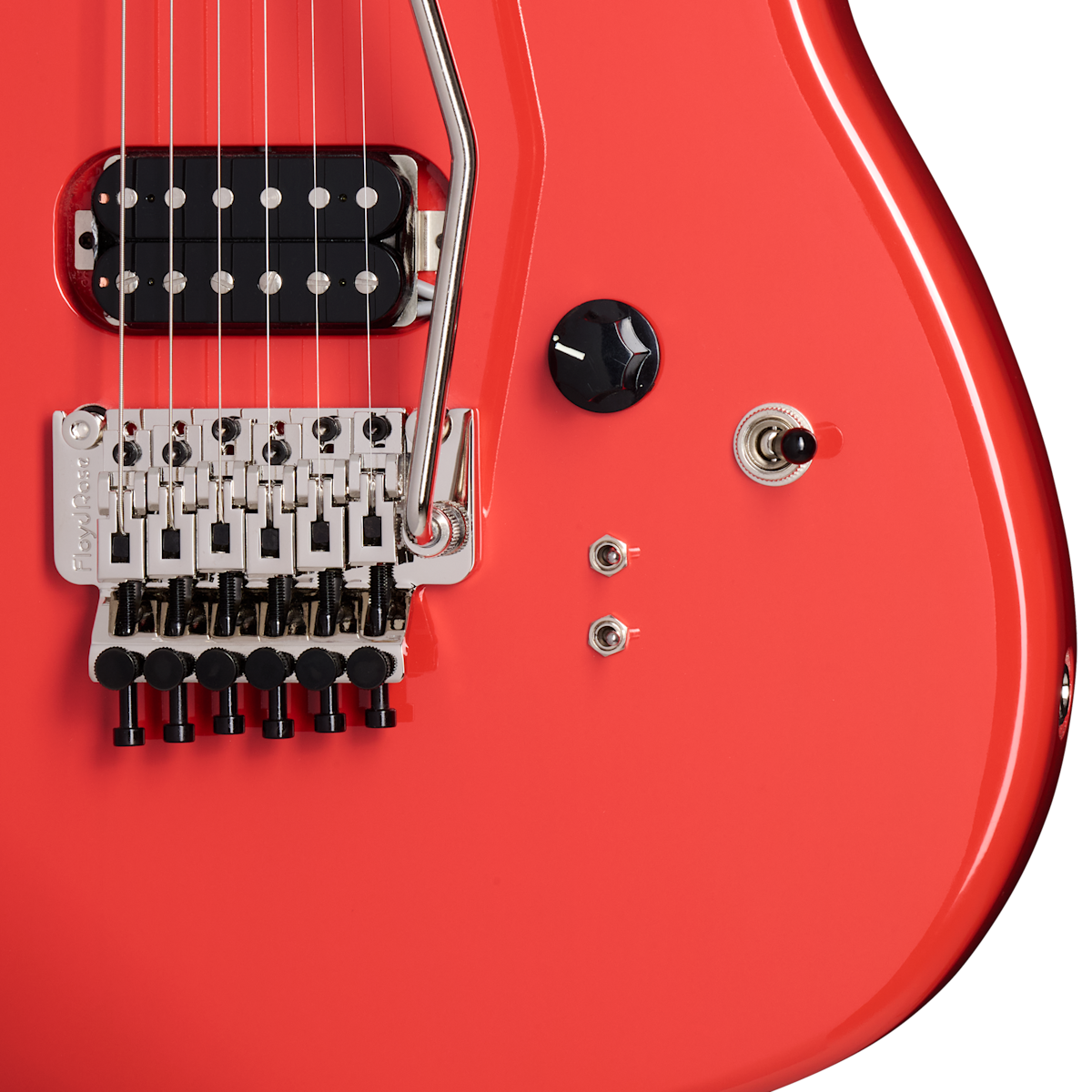

The updated electronics feature a pair of Kramer USA Eruption pickups that were designed by Gibson Master Luthier Jim DeCola. Instead of using mounting rings, the pickups are screwed directly into the body for enhanced sustain. A 3-way toggle pickup selector switch lets you use either pickup by itself or run them together, and two mini toggle switches (one for each pickup) are provided for coil splitting, giving you both humbucker™ and single coil tones that you can combine at will. A single master volume control with a retro-style black knurled knob controls the output level of both pickups simultaneously, making overall volume adjustments easy. A Kramer premium gig bag is included with the Kramer 84 HH to keep this instrument of sonic mayhem safe when you’re traveling to your next gig.
Key Features:
Gloss-finished alder body with matching headstock
Satin-finished hard maple neck with compound radius hard maple fretboard
22 jumbo frets
Two Kramer USA Eruption pickups with individual coil split mini toggle switches
Floyd Rose 1000 Series tremolo and R2 locking nut
Premium gig bag included
Body Style
Double Cut
Body Shape
84 HH
Body Material
Alder
Body Finish
Gloss Body, Satin Neck
Profile
Kramer SlimTaper C
Scale Length
647.7 mm / 25.5 in
Fingerboard Material
Hard Maple
Fingerboard Radius
Compound
Neck Material
Thermally Aged Hard Maple with Walnut Skunk Stripe and Truss Rod Adjustment Spoke Wheel
Neck Finish
Natural Satin
Fret Count
22
Frets
Jumbo
Nut Material
Floyd Rose R2 Locking; Rear Mounted
Nut Width
41.3 mm / 1.625 in
Inlays
Black Dot
Joint
Bolt On with Nickel Kramer Back Plate
Finish
Nickel
Bridge
Floyd Rose 1000 Series Tremolo
Tuning Machines
Die Cast
Pickguard
None
Truss Rod
Dual Action
Truss Rod Cover
None
Control Knobs
Retro Fluted
Control Covers
Black
Strap Buttons
2 - Bottom and Upper Horn
Mounting Rings
None
Pickup Covers
None
Neck Pickup
Kramer USA Eruption R
Bridge Pickup
Kramer USA Eruption T
Controls
Master Volume; Two Mini Toggle Switches (One Per Pickup) for Coil Splitting
Pickup Selector
3-way Toggle
Output Jack
1/4" Nickel Barrel Jack; Flush Mounted
Strings Gauge
.010, .013, .017, .026, .036, .046
Case
Premium Gig Bag
Accessories
Wrench Holder on Headstock Rear
Disclaimer: In order to continually improve the design, quality and performance of our products and instruments and to make use of the best materials at all times, Kramer reserves the right to change specifications without notice.
